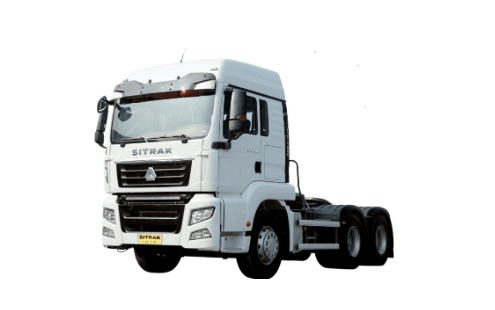

Sitrak Model C7H-G 6x4 Auto Prime Mover.
$0.00
Tags:
Engine & Equipment:
Engine:MC13.54, 12.419L, 6-cylinder 4-valve in-line engine, Bosch High pressure common rail diesel engine, water cooled, 4 stroke w/-intercooler.
540hp (397kW) @ 1900rpm, 2,500Nm (1,843 ft/lb) @ 1050-1350rpm.
Euro 5 emissions rating with NOx control.
SCR catalytic converter with AdBlue injection.
engine valve brake, Exhaust brake
HW25712XAC 12 Speed AMT with Over drive, 12 forward gears, 2 reverse gears.
Wabco control system
Voith Retarder
Forward gear ratios: 11.8, 9.17, 7.10,5.61, 4.38, 3.44, 2.70. 2.10, 1.62, 1.28, 1.0, .79
Reverse Gears: 10.85, 2.48.
Clutch: CH430 diaphragm model w/- Hydraulic operating with air assistance.
“M” (Manoeuvring mode) low speed manoeuvring in forward and reverse.
Air Intake/Exhaust:
Mann + Hummel air filter system mounted LHS of the cabin with housing mounted under cabin.
Mann + Hummel air filter system mounted LHS of the cabin with housing mounted under cabin.
Exhaust in down swept passenger side.
Batteries: 24V CAN bus system.
2 x 12V/180amp.
Battery Isolation switch at battery box.
12 Volt outlet in dash, USB outlet in dash.
SD card slot in dash.
Battery Box with cover – Frame mounted LHS
Central locking with Remote.
Axles & equipment:
Front Axle: HF7 - 7 Tonne rated with parabolic 3 leaf & disc brakes.
Steering system is ZF steering gear and oil pump.
Front mudguards with water suppression as standard.
Rear Axles: 2 x MCY13, 18 tonne rated Hypoid axles.
Differential lock and cross lock on both axles.
Ratio: 3.70:1
Disc brakes and 8 Bag – air suspension.
Factory fitted rear mudguards with spray suppression as standard.
Brake System & Equipment:
WABCO (4) channel (4) Modulator (4) sensor, dual circuit ABS, withfront and rear ventilated disc brakes.
WABCO (4) channel (4) Modulator (4) sensor, dual circuit ABS, withfront and rear ventilated disc brakes.
Exhaust vehicle assist engine brake system.
Traction control, Stability control, Radar cruise control, Lane
departure warning, Hill Start Aid
Frame: Cross-Section dimensions – 270mm x 85mm x 8mm
Width of frame: 940mm Front and 762mm Rear.
Length: 6945mm, Width: 2490mm, Height: 3594 (XLX High Roof)
Front overhang: 1475mm, Rear overhang: 750mm
Steel front Under-run Protection Device (FUPD) for ADR84/00 compliance.
Wheelbase: 4100mm
Fuel Tanks & Equipment:
Aluminium tank with lockable cap.
Aluminium tank with lockable cap.
Standard combination: 800L Diesel Drivers side, 400L Passenger side & 90L AdBlue Drivers side.
Wheels/Tyres:
Aluminium rims: 8.25x22.5, 10 stud 335mm PCD Tyres.
Tyres:
Front: (2) Goodyear – 295/80R 22.5 Highway Pattern.
Rear: (8) Goodyear – 11R 22.5 X-Rib Drive Tyres.
Cab:
Sinotruk Safety Cab – Exceeds ECE-R29 Crashworthy Standards.
Sinotruk Safety Cab – Exceeds ECE-R29 Crashworthy Standards.
Four-point cab full floating suspension.
65-degree cabin tilt angle, for easy access servicing.
External storage compartment on driver and passenger side.
West Coast type, power electric rear view mirrors 6” x 16” with HD mountings for both doors.
LH/RH Convex mirrors under primary mirrors
Close up mirror on passenger side.
90 degree opening, internally reinforced doors.
No-Slip entry steps12/24V Trailer Supply and Suzi coils
Exterior fibreglass sun visor.
2 Bunk mattress’ featuring safety rail (bottom) and harness.
Main Bunk: 790mm wide x 2,200mm long
Optional on XLX Cab - Top Bunk: 705mm wide x 2,125mm long with
XLX cab
Three separate storage compartments above console
Cab (cont’d) Manually operated sunroof.
Floor mats with double insulation
Heater, vent A/C ducting with fresh air filter.
Automatic climate control with air conditioning.
Pneumatically controlled infinite tilt and telescopic adjustable steering column.
Retractable seat belt with pre-tensioner.
ISIRI Leather Driver seat with heating and cooling.
ISRI Leather Passenger.
Dometic cab cooler
Dometic 30L draw fridge.
Lighting:
Sensor LED Projector style driving lights, with 3 position height adjustment.
Sensor LED Projector style driving lights, with 3 position height adjustment.
Lower spotlights.
Daytime running lights
Rear facing spotlight for turntable.
Side LED marker lights
Door activated LH/RH overhead dome and map lights.
Instrument Panel & and Controls:
Electronic dash display.
Electronic dash display.
Driver message centre & warning lights.
Speedometer – kph, tachometer, odometer
Coolant temperature, fuel gauge, gear selection
Primary & Secondary air system pressure gauges - metric
Low air pressure warning light and buzzer
Diagnostic interface connector.
Control switches in auxiliary control panel.
Trailer brake and park brake hand controls.
7” touch screen with Bluetooth
360-degree view camera
Weights:
GVM : 25,000kg
GCM : 75,000kg
EQUIPMENT INCLUDED IN THE PRICE
JOST JSK36D, Class-G50-X,
Standard fitment – 150mm forward off centre.
Factory fitted plastic rear mudguards
4.5kg Fire Extinguisher
Safety Triangle kit.
Trail link Long Tail Air Suzie coils with shut off valves and PBR fittings.
Chassis Walk Plate
COST BREAKDOWN
1 – Sitrak C7H 6x4 Mid Roof Auto Prime Mover with the above
specifications.
Send us an enquiry for a customised quote.
Warranty
3 Years 600,000km “Bumper to Bumper” Factory Warranty.
Exclusions of normal “wear and Tear” items such as tyres and glass, exists along with
other specific conditions.
Choose Quantity
Product Details
The “NEW” Sitrak Model C7H is a Premium Class vehicle with the latest
technology to reduce service costs, increase fuel economy and increase driver safety with a Steel ECE R29 crash roadworthy cabin.
