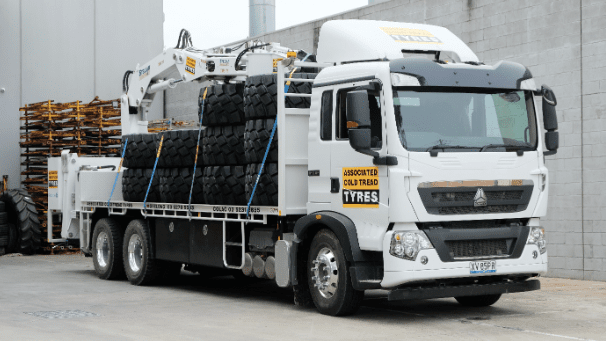

Sitrak Model T5G 6x4 rigid cab chassis.

Engine:
MC07, 7L, 6-cylinder 4-valve in-line engine, Bosch High pressure common rail diesel engine, water cooled, 4 stroke w/- intercooler.

340hp @ 1900rpm 1,250Nm @ 1200-1800rpm.

Euro 5 emissions rating with NOx control.

SCR catalytic converter with AdBlue injection, Exhaust brake

Transmission: Allison 3200P 6Speed automatic Transmission, 6 forward gears, 1 reverse gears.

Air Intake/Exhaust:
Mann + Hummel air filter system mounted LHS of the cabin with housing mounted under cabin.

Exhaust in down swept passenger side.

Batteries:
24V CAN bus system.

2 x 12V/160amp.

Battery Isolation switch at battery box.

12 Volt outlet in dash, USB outlet in dash.

SD card slot in dash.

Battery Box with cover – Frame mounted LHS

Central locking with Remote.

Axles & Equipment:
Front 1 st Axle: HF7 - 7 Tonne rated with parabolic 3 leaf & disc brakes.

Steering system is ZF steering gear and oil pump.

Load share suspension

Front mudguards with water suppression as standard.

Rear Axles: 2 x MCY11, 17.5 Tonne rated Hypoid axles.

Differential lock and cross lock on both axles.

Ratio: 5.29:1

Disc brakes and 4 Bag Hendrickson – air suspension.

Factory fitted rear mudguards with spray suppression as standard.

Brake System & Equipment:
WABCO (4) channel (4) Modulator (4) sensor, dual circuit ABS, with front and rear ventilated disc brakes.

Exhaust vehicle assist engine brake system.

Traction control, Stability control

Frame:
Cross-Section dimensions – 300mm x 80mm x 8mm

Width of frame: 965mm Front and 850mm Rear.

Length: 8230mm, Width: 2480mm, Height: 3085

Steel front Under-run Protection Device (FUPD) for ADR84/00 compliance.

Fuel Tanks & Equipment:
Aluminium tank with lockable cap.
Standard combination:

200L Diesel Drivers side& 40L AdBlue passenger side.

Wheels/Tyres:
Aluminium rims:8.25x22.5, 10 stud 335mm PCD Tyres.

Tyres:Front: (4) Goodyear – 295/80R 22.5 Highway Pattern.

Rear: (8) Goodyear – 11R 22.5 X-Rib Drive Tyres.

Cab: Sinotruk Safety Cab – Exceeds ECE-R29 Crashworthy Standards.

Four-point cab full floating suspension.

65-degree cabin tilt angle, for easy access servicing.

LH/RH Convex mirrors under primary mirrors

Close up mirror on passenger side.

90 degree opening, internally reinforced doors.

No-Slip entry steps

Exterior fibreglass sun visor.

Three separate storage compartments above console

Floor mats with double insulation

Heater, vent A/C ducting with fresh air filter.

Automatic climate control with air conditioning.

Pneumatically controlled infinite tilt and telescopic adjustable steering

column.

Retractable seat belt with pre-tensioner.

ISIRI Leather Driver seat with heating and cooling.

Standard fixed Passenger seat.

Lighting:
Sensor Halogen driving lights, with 3 position height adjustment.

Lower spotlights.

Daytime running lights

Side LED marker lights

Door activated LH/RH overhead dome and map lights.

Instrument Panel & Controls:
Electronic dash display.

Driver message centre & warning lights.

Speedometer – kph, tachometer, odometer

Coolant temperature, fuel gauge, gear selection

Primary & Secondary air system pressure gauges - metric

Low air pressure warning light and buzzer

Diagnostic interface connector.

Control switches in auxiliary control panel.

park brake hand controls.

7” touch screen with Bluetooth

Weights: GVM : 25,000kg

EQUIPMENT INCLUDED IN THE PRICE

4.5kg Fire Extinguisher

Safety Triangle kit.

1 – Sitrak T5G 6x4 Mid Roof Cab chassis with the above

specifications.

Send us an enquiry for a customised quote.

PLUS ON ROADS

Warranty

2 Years 200,000km “Bumper to Bumper” Factory Warranty.

Exclusions of normal “wear and Tear” items such as tyres and glass, exists along with

other specific conditions.
